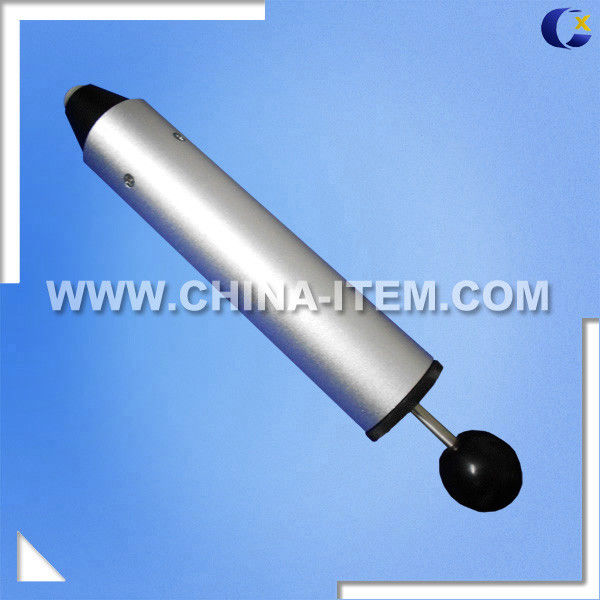

Lab Equipment Use To Safety Test Spring Operated Impact Hammer

China Lab Equipment Use To Safety Test Spring Operated Impact Hammer supplier
Lab Equipment Use To Safety Test Spring Operated Impact Hammer supplier Lab Equipment Use To Safety Test Spring Operated Impact Hammer supplier Lab Equipment Use To Safety Test Spring Operated Impact Hammer supplier

Large Image :  Lab Equipment Use To Safety Test Spring Operated Impact Hammer

Product Details:

Place of Origin: Shenzhen China
Brand Name: Julixing
Certification: CNAS Test Report
Model Number: LX-T06

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contacts us
Packaging Details: Standard packing
Delivery Time: 15-20 Days
Payment Terms: T/T,Western Union
Supply Ability: 500 Set per month
Contact Now
Detailed Product Description
Types Of Companies: China Wholesale Incoterms: CFR
Product Type: Testing Equipment



IEC60068-2-75 Spring-operated Impact-test Apparatus Universal Type

1.Reference to IEC60068-2-75
2.As Universal Type

1.Introduction:

(1) IEC60068-2-75 Spring Impact Hammer Test Apparatus is strictly designed according to IEC60068-2-75,GB/2423.55-2006.GB4706.1 and GB8898 standard.

(2)After applying the impact with the hammer, the products is examined with accessibility probes to determine

access to chock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.

2.Application:

Adjust the impact severity by rotating the knurled cap until the desired energy-value is displayed. Pull the knob slowly out of the device until it locks in place. If moved too fast, the clamp may skip its arrester and will lock at its way back when the pulling-force declines. Hold the device horizontally at it’s housing tube and press the (black) release cone to the specimens plane of impact. The strike is automatically released when the release force threshold is reached



Universal (6 level): 0.14J, 0.20J, 0.35J, 0.50J, 0.70J, 1J adjustable



 Impact energy error
 0.14J ± 0.014J
 0.20J ± 0.020J
 0.35J ± 0.03J
 0.50J ± 0.04J
 0.70J ± 0.05J
 1.00J ± 0.05J

 Technical parameters:
 Length: 211mm
 Weight: 1250g
 Diameter: 50 mm
 Hammer Weight: 60g
 Hammer radius: 10mm
 Shock components: including hit ball and hammer handles, weighs 250g, the hammer is made from white polyethylene imine first
 The impact of the release of force: less than 10N





Lab Equipment Use To Safety Test Spring Operated Impact Hammer
